1.5mm, 3mm, 4.5mm: The Three Depths of Ultherapy, Explained

Halfway through my second Ultherapy session in Gangnam, my practitioner switched transducers and held up the new tip so I could see the marking — 4.5mm, white sticker, small black numbers. I asked her what was different about this one versus the previous tip. She gave me a thirty-second answer that completely reframed how I thought about the entire treatment. This article is the longer version of that thirty seconds, the one I wrote in my notes app the next morning. It's not medical advice. It's the version I wished a friend had texted me before my first appointment, in plain language and with all the small honest detail.

What the three Ultherapy depths actually are

The three Ultherapy depths refer to the three different transducer tips a practitioner uses during a single treatment, each one calibrated to deliver microfocused ultrasound energy at a precise depth beneath your skin: 1.5mm, 3mm, and 4.5mm. Each transducer also operates at a slightly different frequency, which is part of what determines the energy's focal depth. Per the manufacturer's <a href="https://www.merzaesthetics.com/our-portfolio/ultherapy/" rel="dofollow">Ultherapy product information</a>, the platform's defining feature is that the practitioner can pair these depth-specific transducers with real-time ultrasound imaging, so the energy is delivered to the layer the protocol calls for, not approximately near it.

The shallowest tip (1.5mm) targets the upper dermis. The middle tip (3mm) reaches the deeper dermis. The deepest tip (4.5mm) reaches the SMAS — the superficial musculoaponeurotic system, the connective tissue layer that surgeons mobilize during a facelift. Three different layers. Three different jobs. One single appointment, in most clinics.

The number on the transducer label is the focal depth in millimeters from the skin surface. So 1.5mm means the energy converges at a point 1.5 millimeters below the surface; 4.5mm means 4.5 millimeters below. The tissue above the focal point is largely unaffected because the energy is converging there, not depositing heat there. That's the whole reason MFU can target a deep structural layer without burning the skin on the way down. Patients often expect a deep treatment to be a hot one. It isn't, exactly — the heat is concentrated at the focal point, briefly, and the skin surface is left alone.

Why three depths and not one or two

Skin isn't one thing. The face I see in the mirror is the visible surface, but underneath it sits a layered architecture — epidermis on top, dermis below that, hypodermis (the fat layer) further down, and the SMAS below that. Collagen and elastin live mostly in the dermis. Volume sits in the fat. Structural support — the part that hangs differently as we age — lives in and around the SMAS. Each layer ages on its own timeline. The dermis loses collagen density. The fat compartment shifts. The SMAS loosens its tension. A treatment that addresses one layer can't address the others.

Ultherapy's three-depth protocol exists because no single depth would address all three structural concerns. A 4.5mm-only treatment would skip the dermal collagen entirely. A 1.5mm-only treatment would never reach the structural layer. The protocol uses all three because the result, ideally, is a multi-layer collagen response — surface texture refinement, mid-dermal remodeling, and deeper structural tightening, layered like the skin itself. Studies suggest the layered approach is part of why MFU produces the lift indications it's cleared for, though individual response varies substantially.

The other reason for three depths is patient diversity. Not every face needs the same emphasis. A patient in her early thirties who wants subtle texture refinement might benefit more from heavier 1.5mm and 3mm passes, with lighter 4.5mm coverage. A patient in her fifties looking for jawline structure may need more 4.5mm passes through the lower face. The protocol is, in practice, a customizable layering exercise — which is why the consultation matters and why the practitioner's experience reading anatomy matters. The transducers don't make decisions. The person holding them does.

1.5mm: the shallow transducer and what it actually targets

The 1.5mm transducer is the shallowest of the three and reaches the upper dermis. The frequency on this tip is the highest of the set — typically around 10 MHz — because higher-frequency ultrasound focuses at a shallower depth. The energy delivered here creates small thermal coagulation points in the dermal collagen. The dermis responds, over weeks and months, by laying down new collagen in the surrounding tissue. The clinical goal at this depth is fine-line softening, surface texture improvement, and a more uniform skin quality.

My practitioner described the 1.5mm tip as the "finishing layer" — the one she runs over areas like the upper cheek, around the eyes (carefully — not on the orbital bone), and on the lower jawline for textural refinement. The pulses at this depth feel sharper to me but also briefer than the deeper passes. Patients report a quick, hot pinprick sensation, more zingy than dull. Across the literature, the 1.5mm transducer is most associated with fine-line and texture outcomes rather than dramatic lift.

What I didn't expect, on my first treatment, was that the 1.5mm passes are usually the ones I notice earliest in the mirror — small but real shifts in skin smoothness somewhere around weeks four to six. The deeper structural changes from the 4.5mm passes take longer to surface. So patients who pay close attention often see the 1.5mm benefit first and conclude (sometimes wrongly) that the deeper work didn't do anything. Three months in, that judgment usually changes. Studies suggest the dermal response and the SMAS response operate on different timelines, with the deeper layer maturing more slowly.

3mm: the middle depth and the workhorse layer

The 3mm transducer reaches the deeper dermis — below where the 1.5mm tip stops, but above the SMAS. The frequency is around 7 MHz. This is the depth where the mid-dermal collagen and elastin matrix lives, and the energy delivered here triggers a different remodeling response than the shallower tip — more about restructuring and tightening the collagen architecture than refining the surface.

For most Asian skin, my practitioner explained, the 3mm tip is what she'd describe as the workhorse. Korean dermatology forums describe it similarly. The 3mm transducer covers the most surface area in a typical session — across the cheeks, the lower jawline, the submental area — and is responsible for a large share of what patients call the "firming" feeling that emerges over the months following treatment. Sensation-wise, the 3mm pulses feel deeper than the 1.5mm but less intense than the 4.5mm. Patients describe a brief warm thump, sometimes radiating, that fades within seconds. The 3mm depth is also where the imaging guidance becomes most clearly useful — visualizing the dermis ensures the energy is landing in the dermal layer and not above or below it.

The 3mm tip also gets used for areas where the 4.5mm depth would be too aggressive or too close to underlying structures. Around the lower face below the mandible, for example, or in the submental region for patients with thinner tissue, the 3mm tip can deliver useful firming without reaching as deep as the SMAS. This is the kind of judgment call that the imaging guidance helps a practitioner make in real time — the screen shows the tissue depth, and the operator picks the transducer to match. Patients often don't realize how much real-time decision-making happens during a session. It looks methodical because it is.

4.5mm: the SMAS depth and why it gets all the attention

The 4.5mm transducer is the deepest tip in the standard protocol and reaches the SMAS — the connective tissue layer beneath the skin and fat. The frequency drops to around 4 MHz, which is why the focal point can travel that deep without depositing significant energy in the layers above. This is the depth that generates the lift indications Ultherapy is FDA-cleared for: the brow, the submental region under the chin, and the upper neck. It's the depth most associated with the headline results — the "jawline definition" and "under-chin tightening" outcomes that bring most patients to the consultation in the first place.

The 4.5mm passes are the ones patients tend to remember. The pulses feel deeper, slightly duller, and last a fraction of a second longer than the shallower passes. Some patients describe a thumping or tightening sensation, sometimes with a flash of heat. My practitioner ran the 4.5mm tip across my lower jawline and submental area in slow, deliberate lines and used the imaging screen to confirm the landing depth before each pulse. A 2018 review in <a href="https://pubmed.ncbi.nlm.nih.gov/29065174/" rel="dofollow">Dermatologic Surgery</a> notes that SMAS-targeted MFU is the most-published focused-ultrasound modality for lift outcomes, with the longest patient follow-up data in the focused-ultrasound aesthetic category. Studies suggest the SMAS-layer collagen response is the slowest to manifest visually but the most durable.

What patients sometimes underestimate about the 4.5mm depth is how operator-dependent the outcome can be. The SMAS layer varies in thickness by patient and by zone — thinner in some areas, thicker in others — and landing the focal point accurately is a skill that comes from case volume. A practitioner who's done thousands of SMAS passes on Asian skin will recognize anatomical variations a less experienced operator might miss. This is why the question "how many cases has the practitioner performed?" matters more for the 4.5mm depth than for the shallower transducers. The deeper the passes go, the more the operator's reading of the imaging matters to the outcome.

How the three depths combine in a typical Gangnam session

What I didn't fully understand on my first treatment was that the three depths aren't run in three separate sessions — they're layered into one. The practitioner uses all three transducers within a single appointment, switching between them depending on the area being treated. The lower face and submental region typically receive 4.5mm and 3mm passes. The mid-cheek often gets 3mm and 1.5mm. The upper face — forehead and brow — receives a different pattern depending on the indication.

The table below is the categorical map I now keep in my notes, based on what I've observed across my own appointments and what I've read in clinic patient guides. It's not a treatment protocol; the actual line counts and pulse counts vary by clinic, by patient anatomy, and by the indication being treated. But the depth-to-zone logic is roughly consistent across the practitioners I've spoken with.

The other thing I've come to appreciate about the layered approach is that it explains why a single Ultherapy session can take 60 to 90 minutes. The transducer changes, the zone-by-zone planning, the imaging confirmation between passes — all of it adds up. The first time I sat through a full session I expected something closer to a 30-minute laser facial. It was longer, more deliberate, and more methodical than I'd anticipated. By the second session I knew to bring AirPods, lower my expectations about "quick treatment," and pre-plan the rest of the day around it. Patients who book back-to-back appointments the same afternoon usually regret it.

Questions I now ask any clinic before booking

Before I book any Ultherapy appointment now, in Gangnam or elsewhere, I run through a short mental checklist. Will the practitioner use all three transducer depths during the session, or only some? ("Light" or budget Ultherapy packages sometimes skip the 4.5mm depth, which changes the indication considerably.) How many lines will be delivered at each depth, approximately, and is the line count appropriate for my anatomy and indication? Will real-time ultrasound imaging be used, especially at the 3mm and 4.5mm depths?

I also ask about the practitioner's case experience specifically with Asian skin and SMAS-layer protocols. The 4.5mm depth, in particular, demands accurate landing — too shallow and the energy lands in fat (less effective), too deep and it can cause discomfort or transient numbness. Patients report better outcomes from experienced operators across the published literature. None of these questions are exotic; reputable Gangnam clinics expect them and answer them clearly. If a clinic dodges the depth-protocol question or describes Ultherapy as a one-tip treatment, that's worth following up on before you commit.

The last thing I'd add — and this is from my own trial and error rather than anything clinical — is to ask the clinic to walk you through the treatment plan before the appointment, not just at the consultation. Hearing the zone-by-zone plan a day or two ahead of the session lets you ask follow-up questions calmly, in a state where you're not lying down with a transducer near your jawline. Most reputable Gangnam clinics will email or text the plan summary on request. The ones that won't or can't are telling you something. I now treat that as a soft signal in my own decision-making, alongside the more obvious factors like reviews, language support, and the device confirmation.

Frequently asked questions

Do all Ultherapy treatments use all three depths?

Standard full-face Ultherapy protocols use all three transducers. Some shorter or lower-cost packages may skip the 4.5mm SMAS depth, which means the treatment targets only dermal layers and not structural lift. Always ask the clinic which transducers are included in the specific package you're booking. The depth combination changes what the treatment can address.

Which depth hurts the most?

Patients vary widely, but most report the 4.5mm SMAS depth as the most intense sensation — a deeper, duller pulse with a brief flash of heat. The 1.5mm tip can feel sharp but brief. The 3mm tip is often described as the most tolerable. Most Gangnam clinics offer pre-treatment numbing cream and oral pain management. Discuss comfort options with your practitioner before the session.

Why does the 4.5mm transducer use a lower frequency?

Lower-frequency ultrasound focuses at a deeper point. The 4.5mm tip operates around 4 MHz so the focal energy lands at the SMAS layer without depositing significant heat in the dermis or fat above it. The 1.5mm tip uses around 10 MHz to focus shallowly, and the 3mm tip sits between them. The frequency-depth relationship is what makes the layered protocol possible.

Can I request only the 4.5mm SMAS depth for a more targeted lift?

Some clinics will customize a SMAS-only protocol, but most experienced practitioners recommend the layered approach because the dermal and structural responses complement each other. A SMAS-only treatment may produce some lift but skips the texture and dermal remodeling benefits. Discuss the indication with your provider — the right protocol depends on what you're trying to address.

How long until I see results from each depth?

Studies suggest the dermal responses (1.5mm and 3mm) tend to manifest earlier — sometimes within four to eight weeks. The SMAS-layer (4.5mm) collagen response is slower but typically more durable, with peak visible effect often reported between three and six months. Individual timelines vary substantially, and some patients report subtle changes earlier or later. Realistic expectation-setting is part of every good consultation. If a clinic promises immediate dramatic lift from Ultherapy at any depth, that's a sign to slow down and ask more questions, since the technology produces gradual collagen remodeling rather than instant tightening.

Are the three Ultherapy depths the same on Ultherapy Prime as the original device?

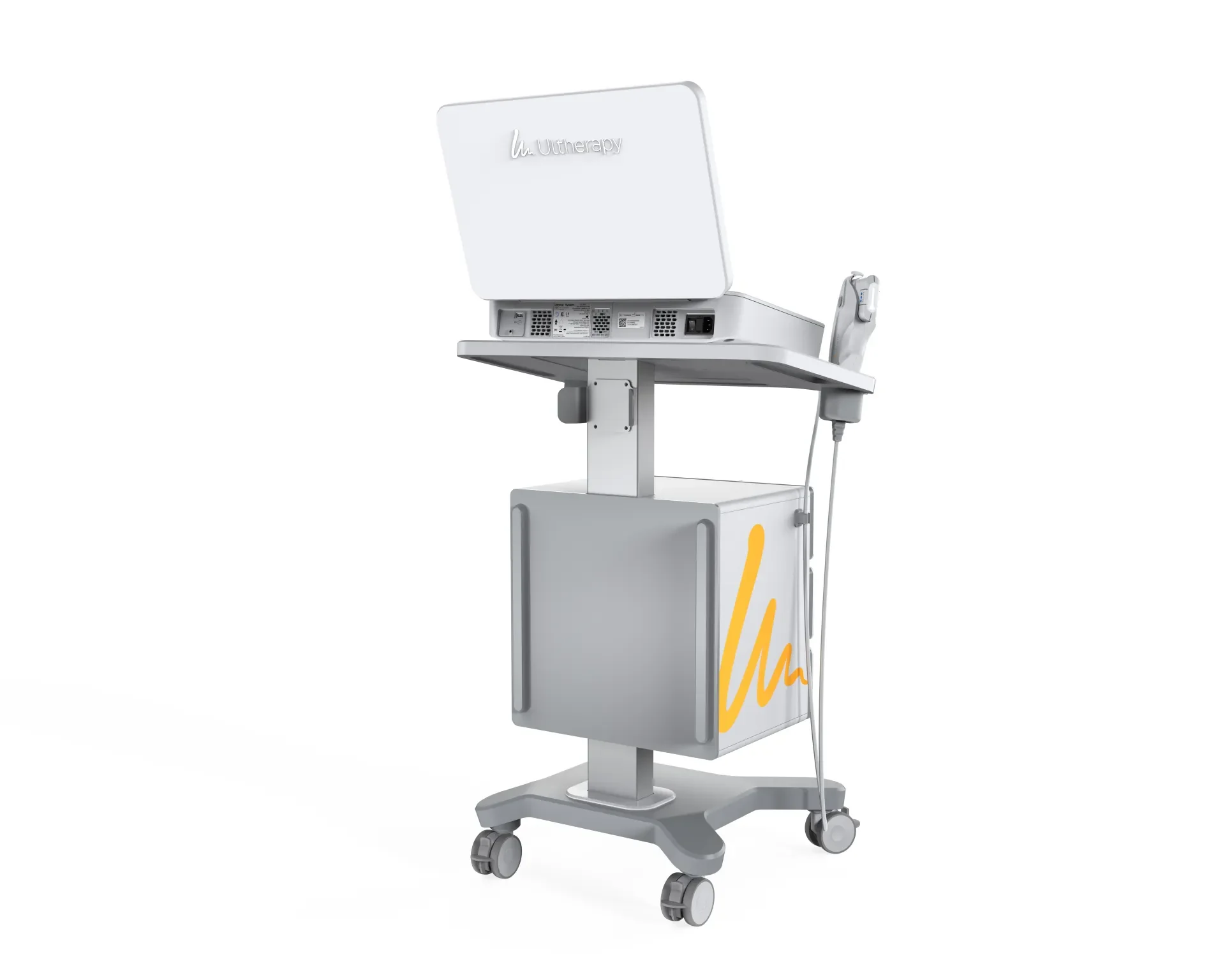

Yes — the three depths (1.5mm, 3mm, 4.5mm) are consistent across the Ultherapy platform. Ultherapy Prime, the upgraded device, refines the user-experience side: improved transducer ergonomics, faster mapping, and updated patient comfort features. The underlying depth and frequency architecture remains the same. Ask your clinic which version of the device they currently operate.
